2014+ RAM 2500 - Air Spring Kit

$999.95

SKU: 89-12140

In stock

Management: Manual Inflation Kit - Airline w/ Schrader Valves

Controller: AirIQ App (Free Download)

Tank: No Tank

Product Questions? Ask An Expert!

Send us a message and we will get right back to you.

2014+ RAM 2500 - Air Spring Kit

$999.95

Product Information

Upgrade your RAM 2500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. This 100% factory-assembled kit is engineered for your truck and delivers unmatched ride comfort when unloaded, enhanced stability under load, and adjustable height for easier trailer hookup or cargo access. It fits trucks at factory height and up to 3" lifts right out of the box, with upgrade options available for 3–6" lift kits.

This system is also a direct replacement for RAM 2500 models equipped with factory air suspension. If retaining the factory air management system, a 6mm-to-¼" push-to-connect adapter (not included) will be required.

WARNING - Never exceed manufacturer's Maximum Payload or GVWR

Fitment Notes

Ride Height = factory to +3". For lift amount +3" to +6" add spacer kit 89-12140-3. Includes heat wrap kit for tailpipe.

5th Wheel Hitch Compatibility

Compatible with all 5th wheel hitches.

Kit Includes

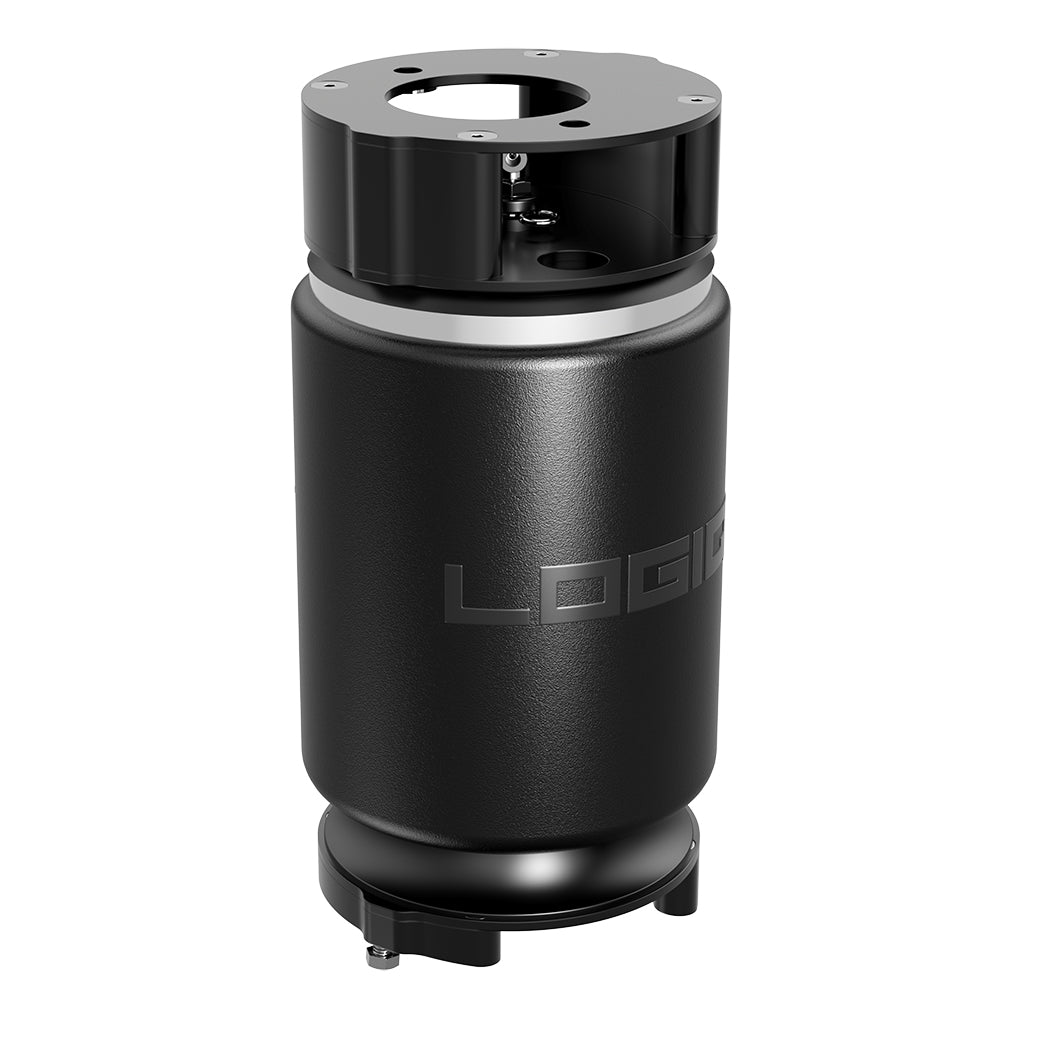

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit
(1) Exhaust Heat Wrap Kit

Tech Specs

Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 8,200 lbs @ 150 psi
Payload Capacity: 5,000 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi

Downloads

Installation Instructions

CA Residents

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov/product.

LOGIQ Air Spring Kit Features

Optimized Ride Quality

OE-style LOGIQ air springs feature a low frequency design for smooth performance, even while towing and hauling.

Enhanced Stability & Support

LOGIQ high-endurance air springs provide up to 7,200 lbs of load support (dual spring models).

OEM Hitch Integration

Compatible with a wide variety of OEM and aftermarket 5th wheel hitches.

Precision Fitment

Built-in features that locate off the factory frame and leaf springs guarantees proper fitment and operation for every install.

Lifetime Warranty

Air Spring Kits come with a Limited Lifetime Warranty and FREE ReadyGUARD 5-year - 60,000 mile Powertrain Warranty.

This system is the go to for me.. I tow a 45’ toy hauler with 2800 pound pin weight –1200 mile trips! Things you notice with this system is shifting and braking are smoother...Zero Regrets!

Rocky R.

Hands down, the best set up I’ve ever had.

Mark M.

I'm towing a massive 43 foot fifth wheel toy hauler. This setup worked fantastic and the ride was very impressive. I would never be able to live with the previous style airbag after trying these...

Greg N.

I have them on my truck and by far the best bags, as well as customer service!

Joshua I.

LOGIQ Air Spring Kits bring a revolutionary change to a market that has been stagnant for decades by incorporating cutting-edge air spring technology.

Explore Air Spring Kits

LOGIQ AirIQ is so much more than just a compressor. Each Air Management option has features and benefits to suit the wide varieties of needs and preferences for your specific task.

Explore Air Management

Which Air Management is right for you?

Complete your kit with Air Management that best suits your needs. LOGIQ AirIQ is the brains of the operation that will intelligently manage the air delivery to your Air Spring Kit. Each AirIQ kit can be controlled with the free AirIQ App or paired with the optional Remote Control.

AirIQ HD2

For those who demand the best-of-the-best. The LOGIQ AirIQ HD2 has a 2-channel Smart Manifold that can independently control the driver side and passenger side Air Springs. Mated to the manifold is the Heavy-Duty compressor, tested to be up to 2.5x faster than the competition.

AirIQ SD2

If you like total control, but don't need the fastest option available, you might like the LOGIQ AirIQ SD2. This AMP utilizes the same 2-channel Smart Manifold as the HD2, however this option is paired with the Standard Duty compressor. Standard doesn't mean bad though, as this compressor still twice as fast as the competition.

AirIQ SD1

When you want a sophisticated yet simple solution: The LOGIQ AirIQ SD1 utilizes our 1-channel Smart Manifold and Standard Duty Compressor. Enjoy speedy lifting and paired rear controls.

Manual Inflation Kit

Some people crave simplicity. No Apps needed, No Wiring Necessary. Included is a length of air line , schrader valves and zip ties. Everything you need to hook up to your Air Spring Kit and manually inflate to your desired rear ride height. The Manual Inflation Kit is the default option when purchasing any LOGIQ Air Spring Kit.

Air Management Accessories

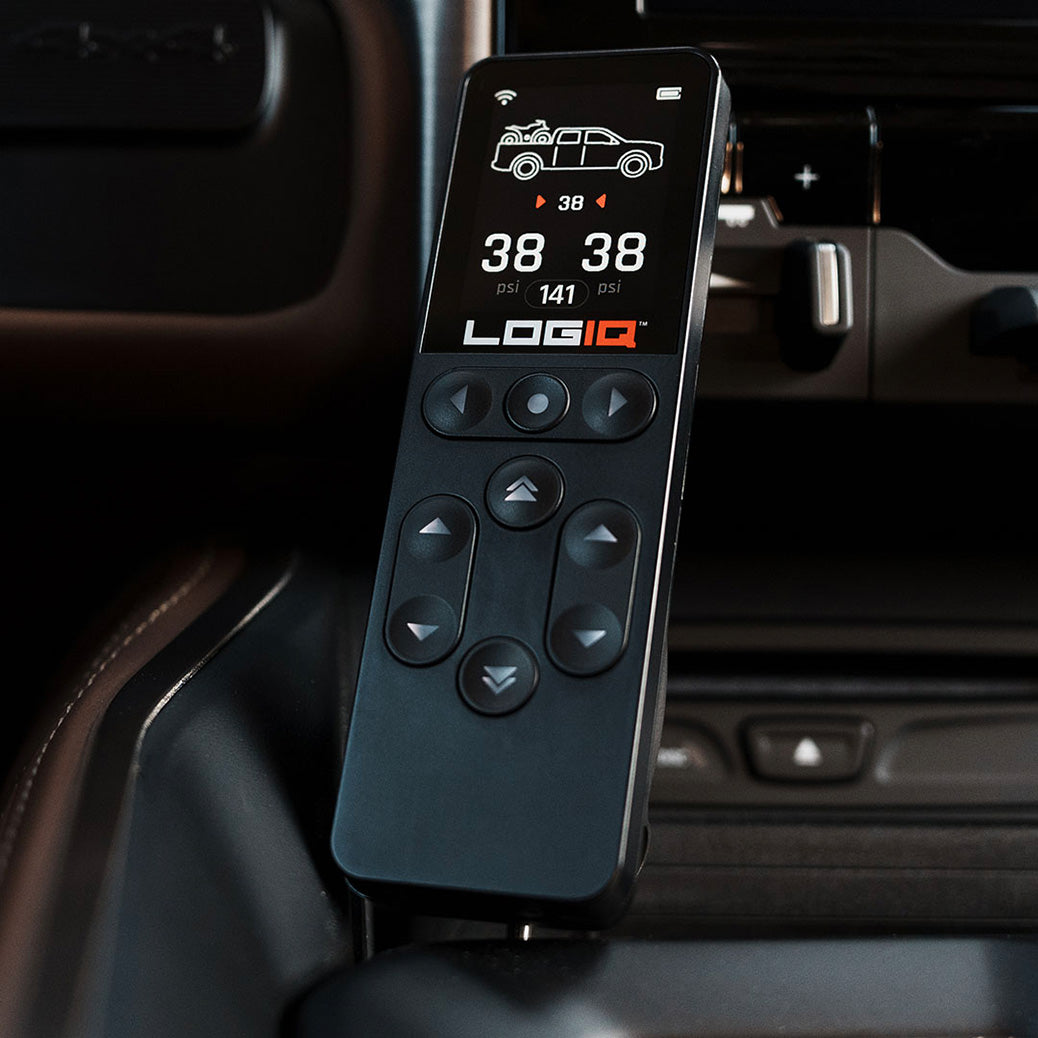

AirIQ Remote Control

Boost Tank

"This system coupled with the air tank is the best upgrade I have done to my new 2026 Ram 2500 Mega Cab. I’m thoroughly impressed with the quality of materials and the ease and quickness of ordering and delivery. The install was very challenging as the Mega cab has additional body mounts unlike a crew cab and the new models has a few different things under the body, however with a little extra time, coaxing, and creativity I was able to get the compressor and tank mounted. The bags, airline, and electrical was a cinch and quick. I can’t stop dropping and lifting my truck showing it to everyone who will listen. The app works flawlessly- I only wish there was a CarPlay app so I could have it on my truck screen. I cannot speak on longevity but based on the quality of components I have no hesitation saying it will last the life of the truck. Buy this setup."

— Skyler (5/5)

Easy to use, capable, and comfortable

"Where do I even begin? These air bags have completely transformed my towing experience! Whether I’m loading heavy items into the bed, hooking up a bumper pull, or towing my 5th wheel, these air bags make every single task effortless. The convenience of being able to lower the rear of the truck for easy loading and unloading is an absolute back-saver—no more struggling to lift or maneuver heavy cargo. When it comes to hooking up or dropping trailers, this product truly shines. Whether it’s a bumper pull or 5th wheel, I no longer have to worry about raising or lowering the trailer’s tongue. Instead, with a simple truck height adjustment, everything falls into place perfectly. The optional remote makes this feature even more user-friendly, making towing a breeze with zero hassle. And let’s talk about towing: it’s been nothing short of amazing. With the AirIQ HD2 management system, simply select your trailer’s preset, and you’re ready to roll—flawlessly. The ride quality, whether loaded or unloaded, is exceptional. The truck handles like a dream, providing a smooth and controlled ride, no matter what you’re hauling. I honestly can’t recommend this product enough. If you’re serious about towing or hauling, this is the game-changing upgrade you didn’t know you needed. Worth every penny!"

— Devin K. (5/5)
