2009+ RAM 1500 - Air Spring Kit

Coil replacement Primary Air Suspension

$699.95

SKU: 89-11090

In stock

Management: Manual Inflation Kit - Airline w/ Schrader Valves

Controller: AirIQ App (Free Download)

Tank: No Tank

Product Questions? Ask An Expert!

Send us a message and we will get right back to you.

2009+ RAM 1500 - Air Spring Kit

$699.95

Product Information

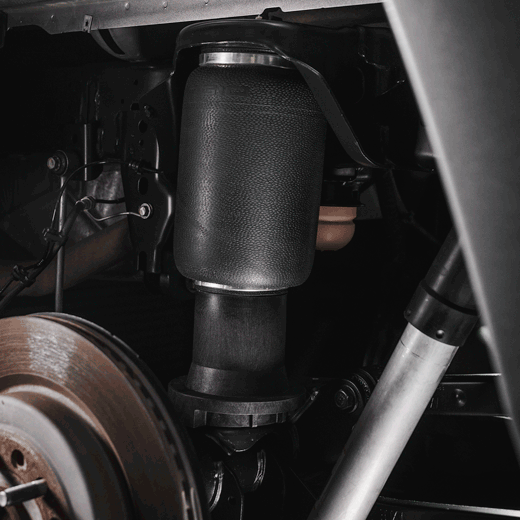

Upgrade your RAM 1500 with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. Enjoy a smoother ride unloaded, superior load support when hauling, and adjustable height for easier loading or trailer hookup. Fits factory-height trucks and up to 3” lifts out of the box. With a 6,000 lb capacity at 150 PSI, it’s smarter air suspension for serious work.

Fitment Notes

Ride Height = factory to +3". For lift amount greater than +3" to +6" add spacer kit 89-11090-3.

Not Compatible with TRX or RHO Trim Packages

Kit Includes

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit

Tech Specs

Air Spring Location: Axle Mounted Outboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 6,000 lbs @ 150 psi
Payload Capacity: 3,800 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi

5th Wheel Compatibility

Compatible with all 5th wheel hitches.

Downloads

Installation Instructions

CA Residents

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov/product.

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit

Related Products

2009+ RAM 1500 - Rear Spacer Kit For 3" to 6" Lifts

SKU: 89-11090-3

2009+ RAM 1500 - Rear Spacer Kit For 3" to 6" LiftsSpacer Kit

$149.95

SKU: 50-42200

AirIQ HD22-Channel Air Management w/ Heavy Duty Air Compressor

From $999.95

SKU: 50-21200

AirIQ Remote Control2 Channel Wireless Remote Control

$149.95

SKU: 50-10200

Aluminum Boost Tank2 Gallon Powder Coated Aluminum Air Tank

$224.95

SKU: 89-90008

Replacement Air Spring (IQ-ASA-11090)

$349.95

Optimized Ride Quality

OE-style LOGIQ air springs feature a low frequency design for smooth performance, even while towing and hauling.

Enhanced Stability & Support

LOGIQ high-endurance air springs provide up to 6,000 lbs of load support

OEM Hitch Integration

Compatible with a wide variety of OEM and aftermarket 5th wheel hitches.

Precision Fitment

Built-in features that locate off the factory frame and axle guarantees proper fitment and operation for every install.

Lifetime Warranty

Air Spring Kits come with a Limited Lifetime Warranty and FREE ReadyGUARD 5-year - 60,000 mile Powertrain Warranty.

Coil Replacement

Once the coil Is removed the Air Spring Kit simply clicks into place – Making this our easiest installing kit to date

Long Travel

3" surplus of extension travel let's us FLEX on the competition – off-road with increased
comfort and confidence

Tested Tough

LOGIQ Air Spring Kit's are universally tough and validated to withstand the harshest conditions – There's a reason semi-trucks, buses and trains  all use Air Springs.

6,000 lb

Total Lifting Force at 150 PSI

3,800 lb Payload Capacity at 150 PSI
(Never Exceed Maximum Payload or GVWR)

RAM 1500 Feature Video

Installation Guide

Overall rating: 5.0 / 5 from 3 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Amazing product

"Originally purchased to get rid of the sag while towing. I have a 2022 Ram 1500 Rebel and I cannot believe the ride difference. Having the off-road suspension it was a little rough riding, with your airbag spring replacement the ride quality is absolutely amazing. I hooked up my 23 foot RV trailer, had to reset it all up and wow, I could not be happier. No more over torsioning the weight distribution bars and had to lower my ball height by an inch and a half. You now have a product ambassador, I will be spreading the word about this to everyone who is interested in hearing what I have to say. Thank you for making such a great product."

— Daryl S. (5/5)

Amazing!

"This rear air bags for my 6” lifted 2025 Ram 1500 Rebel are amazing! Truly makes my suspension system ride like a cloud!"

— Blake (5/5)

Great for Moto Enthusiasts!

"I had the chance to drive this full solution on a Ram 1500 just like the adverts and it worked great! It handled chunky service roads comfortably, conquered a few fun side-hits off the trail and even allowed me to take my moto out of the back with ease without a ramp! Simply lowering the rear made loading motos with a ramp an absolute breeze. I am super happy with my experience and would highly recommend!"

— Eric S. (5/5)

Q&A

Which Air Management is right for you?

Complete your kit with an Air Management Package (AMP) that best suits your needs. LOGIQ Air Management is the brains of the operation that will intelligently manage the air delivery to your Air Spring Kit. Each Air Management Package can be controlled with the free AirIQ App or paired with the optional Remote Control.

AirIQ HD2

For those who demand the best-of-the-best Air Management. The AirIQ HD2 has a 2-channel Smart Manifold that can independently control the driver side and passenger side Air Springs. Mated to the manifold is the Heavy-Duty compressor, tested to be up to 2.5x faster than the competition.

AirIQ SD2

If you like total control, but don't need the fastest option available, you might like the AirIQ SD2. This kit utilizes the same 2-channel Smart Manifold as the HD2, however this option is paired with the Standard Duty compressor. Standard doesn't mean bad though, as this compressor still twice as fast as the competition.

AirIQ SD1

When you want a sophisticated yet simple solution: The AirIQ SD1 utilizes our 1-channel Smart Manifold and Standard Duty Compressor. Enjoy speedy lifting and paired rear controls.

Manual Inflation Kit

Some people crave simplicity. No Apps needed, No Wiring Necessary. Included is a length of air line , schrader valves and zip ties. Everything you need to hook up to your Air Spring Kit and manually inflate to your desired rear ride height. The Manual Inflation Kit is the default option when purchasing any LOGIQ Air Spring Kit.

Air Management Accessories

AirIQ Remote Control

Boost Tank
